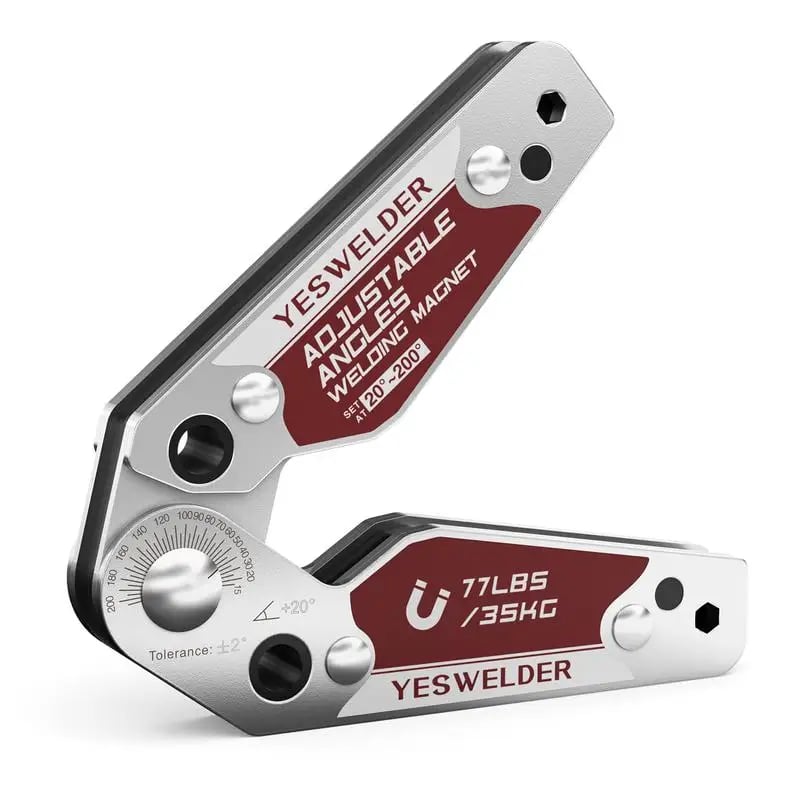

Adjustable Angle Welding Magnet – 20°–200° Magnetic Welding Holder with Locking Hex System
Adjustable Angle Welding Magnet – 20°–200° Magnetic Welding Holder with Locking Hex System
BUNDLE & SAVE
Couldn't load pickup availability
-
Ordered
- - -
Order Ready
- - -
Delivered
Adjustable Angle Welding Magnet – 20°–200° Magnetic Welding Holder with Locking Hex System
Set The Joint Before You Strike The Arc.
Hold compatible steel pieces, move them to the angle your project needs, lock the hinge and spend less time physically supporting the joint while you prepare the weld.
A Better Tack Starts With Workpieces That Stay Where You Put Them.
Holding tube, plate or brackets by hand while also checking the angle makes fabrication unnecessarily awkward. A magnetic positioning holder gives compatible steel pieces temporary support while the joint is aligned.
Bring two compatible steel workpieces together at the intended joint.
Pivot the holder instead of swapping between several fixed-angle magnets.
Spend less effort physically holding the pieces while preparing the first weld.

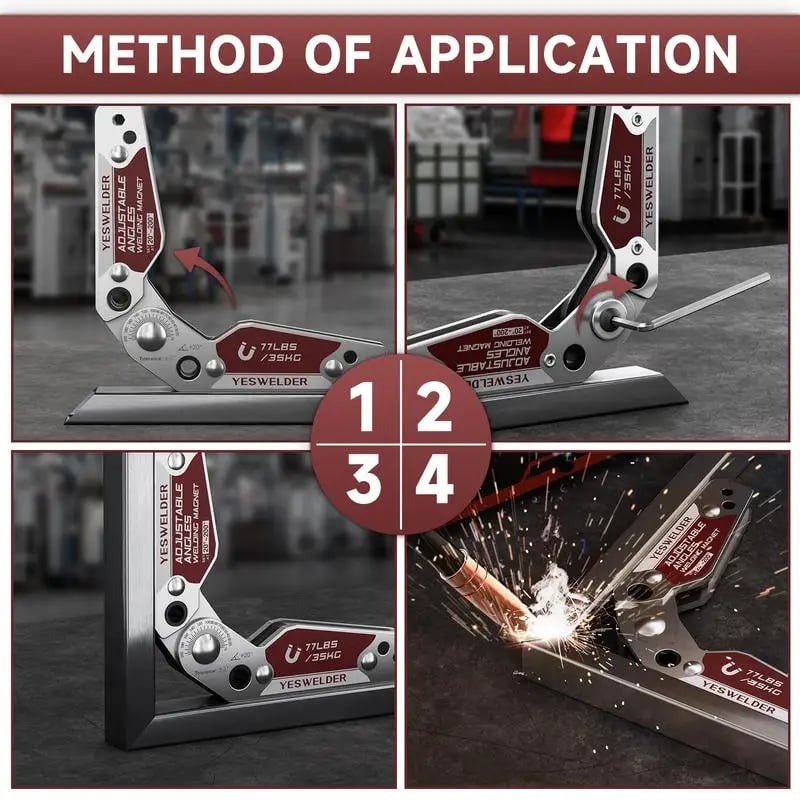

Adjust. Lock. Position. Weld.
Place one magnetic face against compatible steel.
Pivot the opposite arm toward the required joint.
Use the hex wrench to secure the hinge position.
Confirm the joint and prepare the weld.
Go Beyond The Usual 45° And 90° Setup.

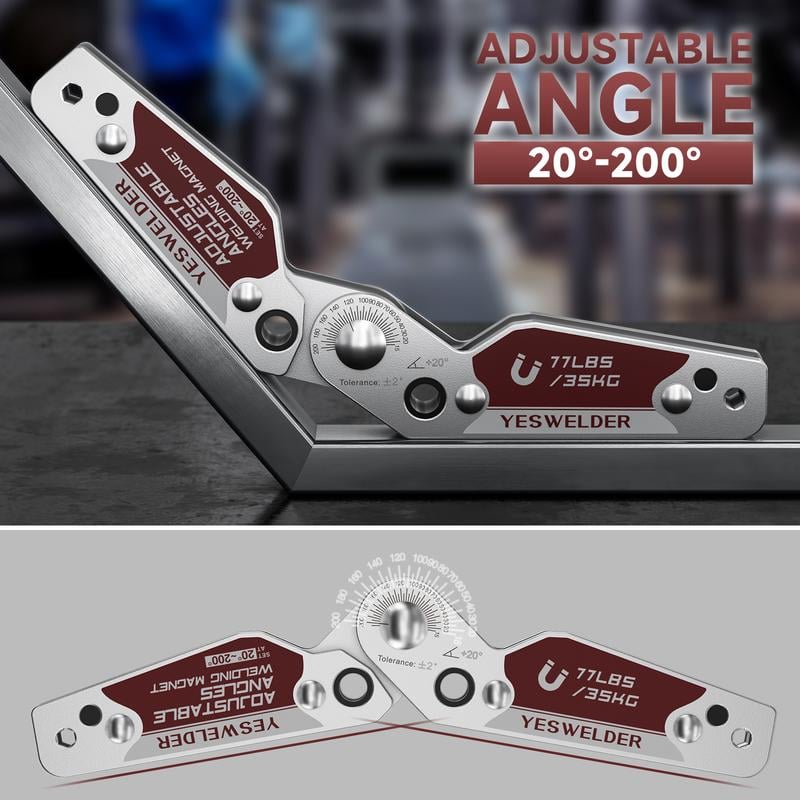

The center pivot provides an adjustment range from 20° through 200°, making the holder useful across acute, right-angle and wide-open joint positions.
Read The Angle. Tighten The Hinge. Keep Moving.

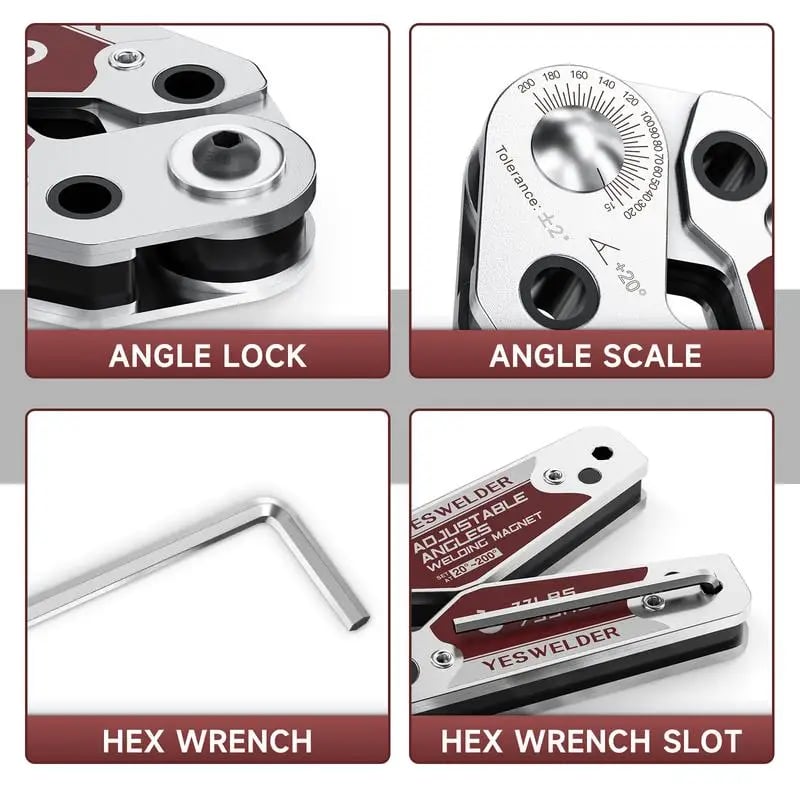

Degree markings are positioned directly around the pivot, while the hex-lock system lets you tighten the holder after reaching the desired angle.
Read the approximate joint position directly at the center pivot.
The current product marks a ±2° scale tolerance.
The tool includes a built-in location for the supplied hex wrench.
48LB For Compact Setup. 77LB For A Larger Magnetic Holder.
The current product is offered in two magnetic-force classes. Both use the same adjustable-angle concept, while the 77LB model has a larger body and stronger listed magnetic rating.

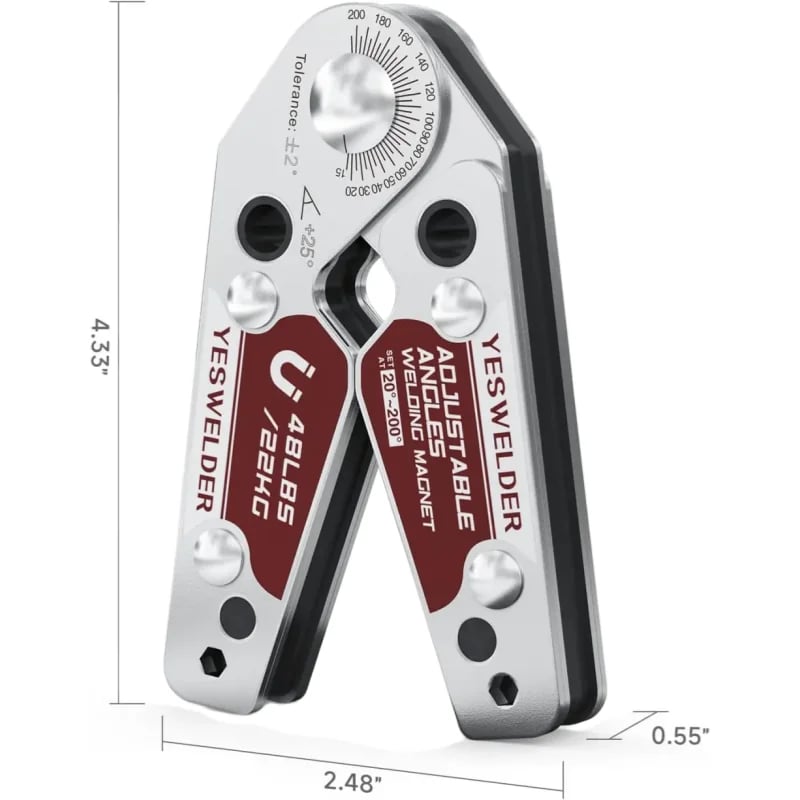

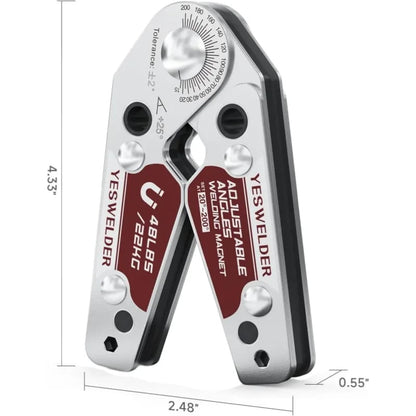

Approx. 4.33 × 2.48 × 0.55 in. Rated at 48LB magnetic force. A smaller option for general welding setup and compact fabrication work.

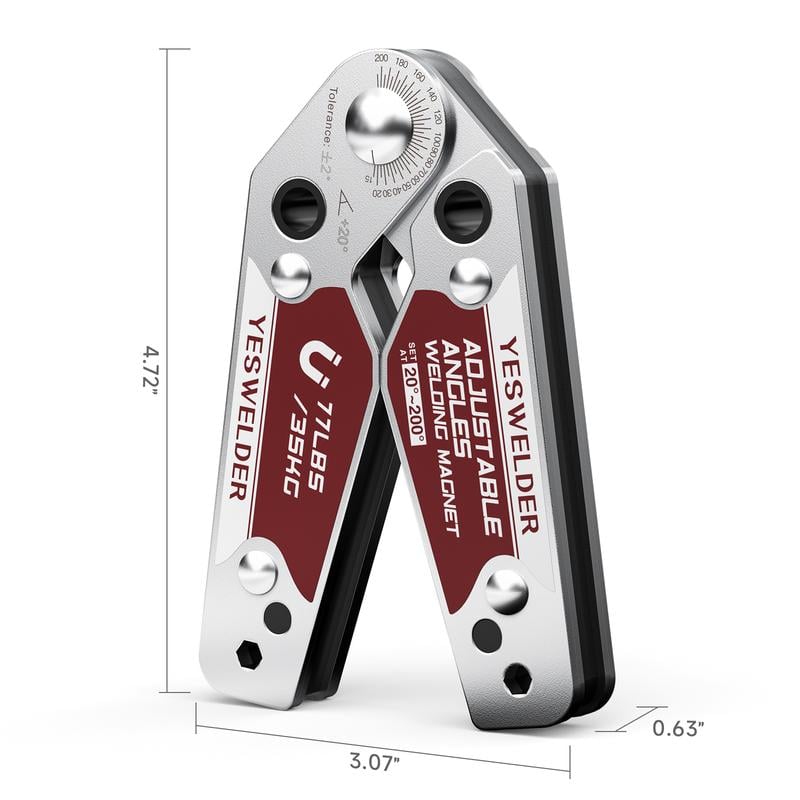

Approx. 4.72 × 3.07 × 0.63 in. Rated at 77LB / 35KG class. A larger holder for users wanting the stronger listed magnetic rating.
Compact Magnetic Positioning.

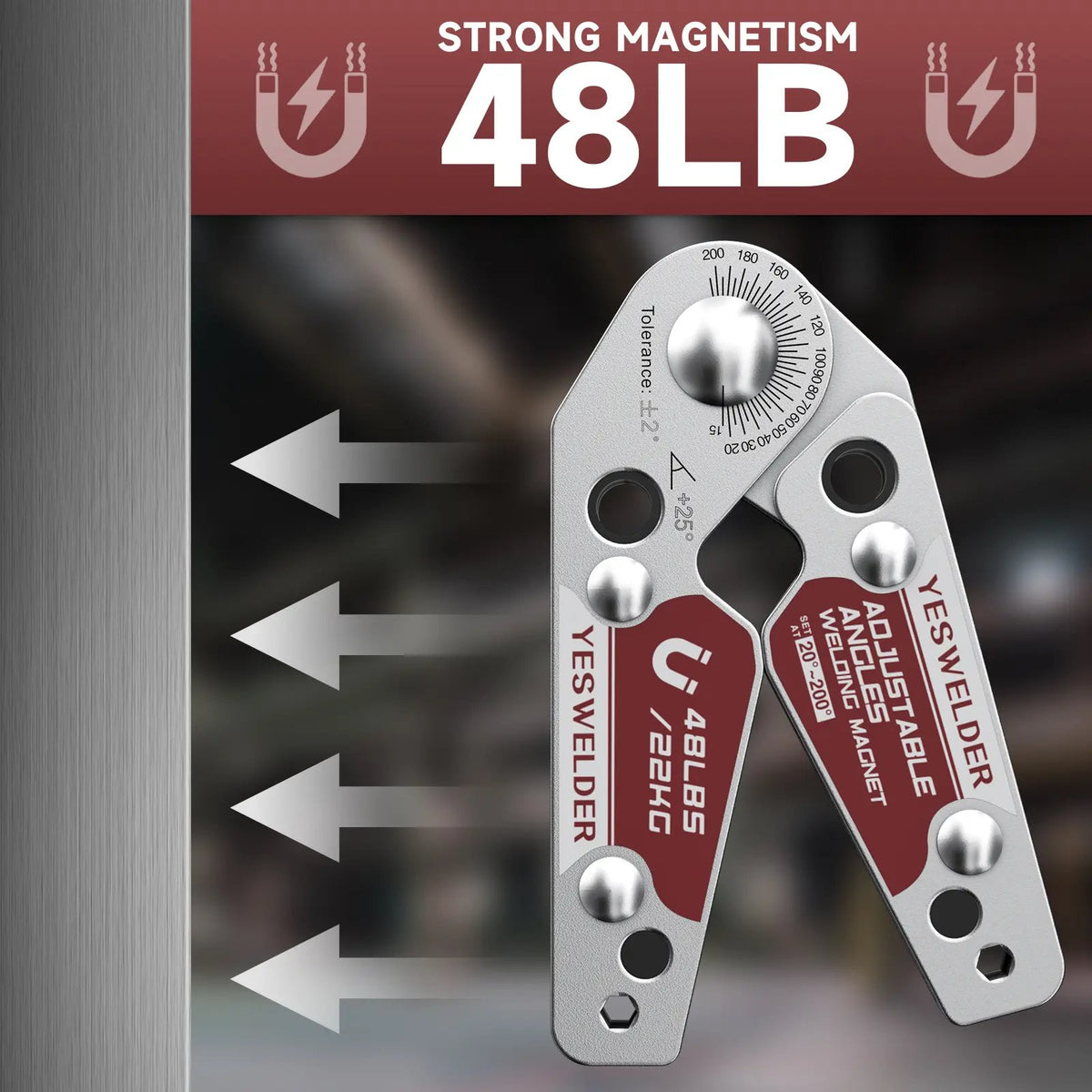

The 48LB model combines the full 20°–200° adjustment system with the smaller body size.
Step Up To The Higher Magnetic Rating.

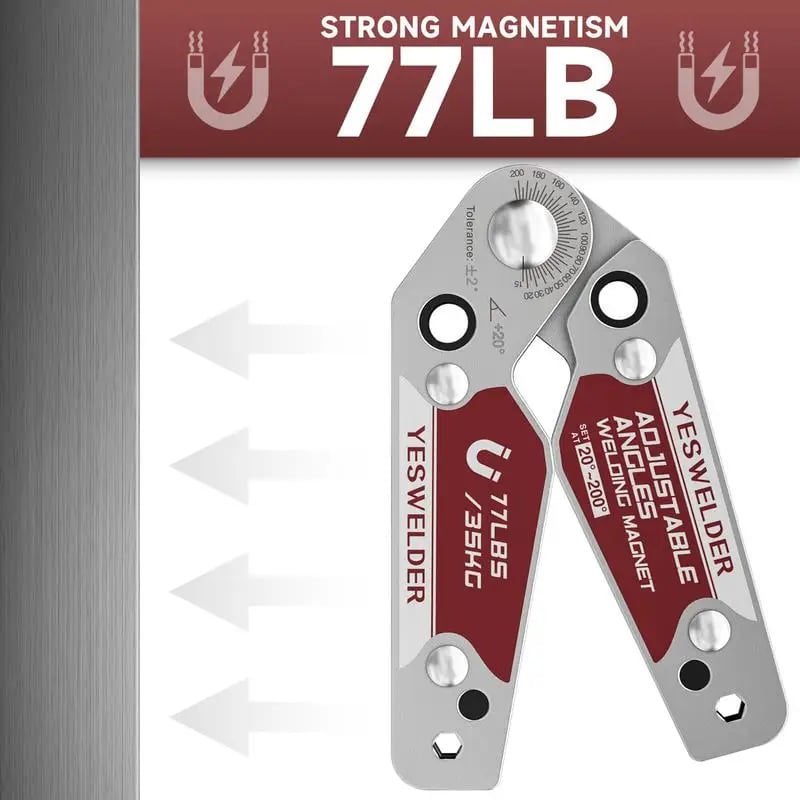

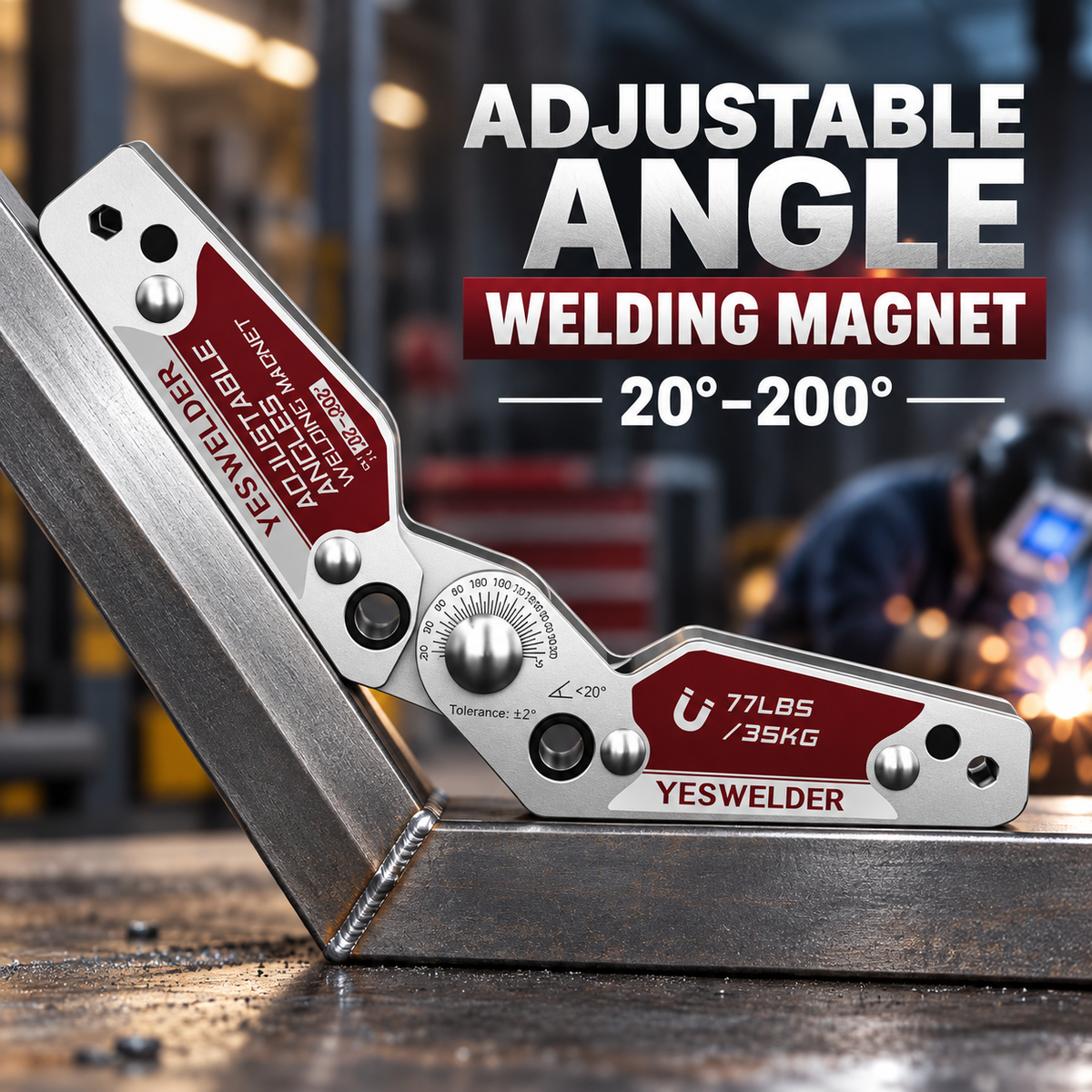

The 77LB model is listed at approximately 35KG class and uses the same adjustable hinge concept in a larger body.
Approx. 4.33 × 2.48 × 0.55 in
Approx. 4.72 × 3.07 × 0.63 in
Spend Less Time Fighting The Joint Before The Weld.
Adjustable Positioning
One holder for more than one angle.
Move through a broad 20°–200° range instead of relying only on fixed-angle magnets.
Two Magnetic Ratings
Choose between 48LB and 77LB.
Match the holder size and listed magnetic-force class to your fabrication workflow.
Hex-Locking Hinge
Adjust first. Tighten second.
The supplied hex wrench secures the hinge after the desired position is set.
Visible Degree Scale
See the angle at the pivot.
Markings around the center joint help make setup more repeatable.
- Wear appropriate welding helmet, eye protection, gloves and protective clothing.
- Verify the workpiece is stable before striking an arc.
- Do not use magnetic positioning as a substitute for structural clamping when a mechanical fixture is required.
- Keep the magnet away from sensitive electronics, magnetic media and equipment affected by strong magnets.
- Allow welded metal and the surrounding work area to cool before handling.
Quick Answers Before The Next Fabrication Job.
Which sizes are available?
What angle range can I set?
How do I lock the angle?
What is the difference between 48LB and 77LB?
What metals does it work with?
Can I use it for frame welding?
What comes in the package?
Stop Using Your Free Hand As The Welding Fixture.
Choose 48LB or 77LB. Set the angle. Lock the hinge. Position the steel. Then put your attention back on alignment and the weld.
