π40CM Adjustable Stainless Steel Tile Hole Positioning Rulerπ
Stop Re-Measuring Every Cutout.
Capture the position of pipes, outlets and offsets, lock the layout, then transfer the same reference directly to your tile, panel or board before you cut.
One Layout. Less Back-And-Forth.
Pipe centers, outlet boxes and edge offsets can turn one simple cutout into several separate measurements. Every time you move from the wall to the workpiece, you have another chance to lose the reference point.
Match The Layout, Not Just The Distance.
The sliding cross-ruler and long center slot let you adjust horizontal position, vertical position and angle around the central locking point.
Move the cross ruler to copy spacing between openings or from a nearby edge.
Use the center track to reposition the main guide for different installation heights.
Turn the ruler around the center point for straight, angled or offset references.

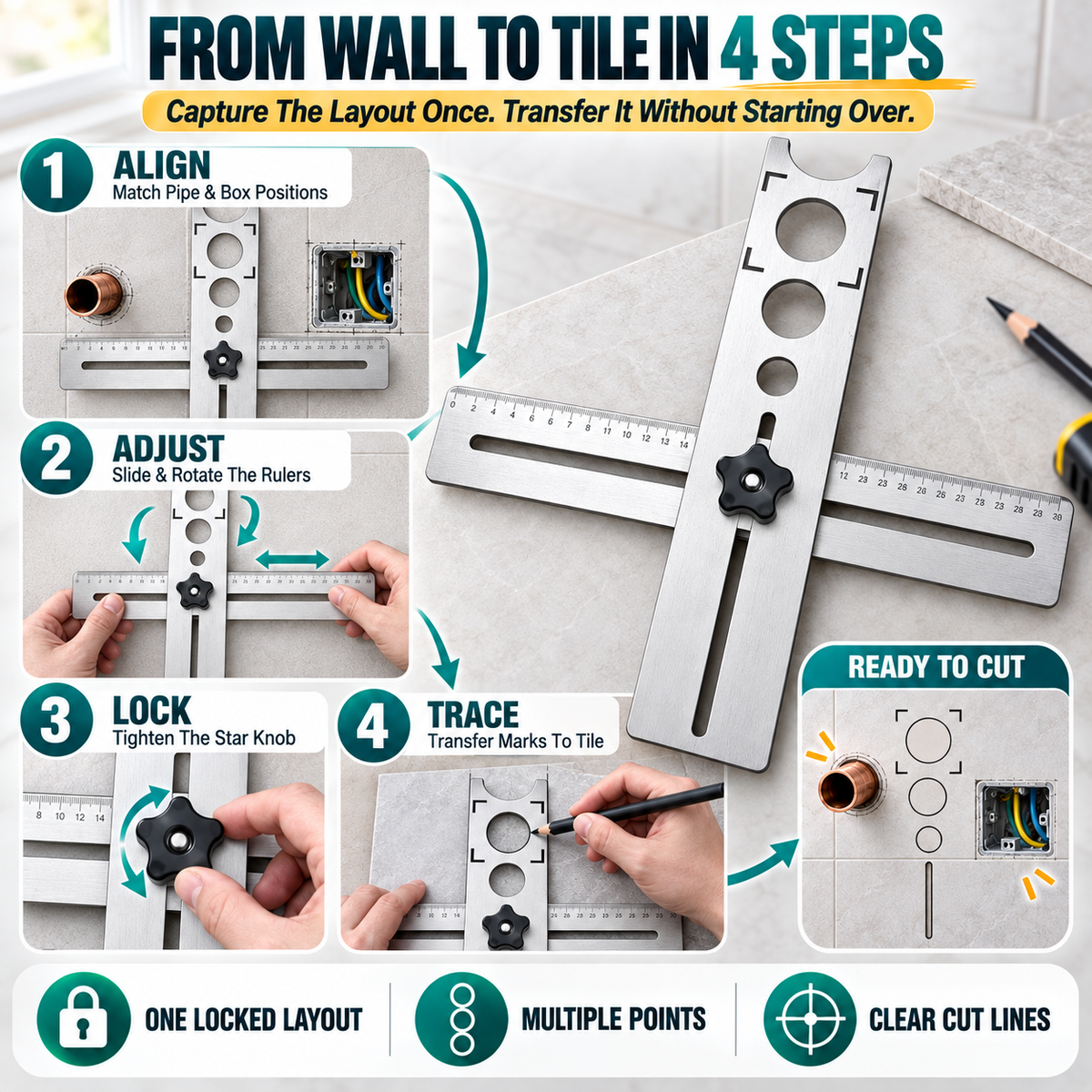

Measure. Lock. Transfer. Mark.
Build the reference directly at the installation point, then move the locked ruler to your workpiece before drilling or cutting.
Place the ruler against the pipe, outlet, fitting or edge you need to reproduce.
Adjust the ruler sections until your required centers, offsets and angle are aligned.
Hand-tighten the center star knob to hold the chosen layout while transferring it.
Place the ruler on the tile or panel, verify the position, then mark the required opening.

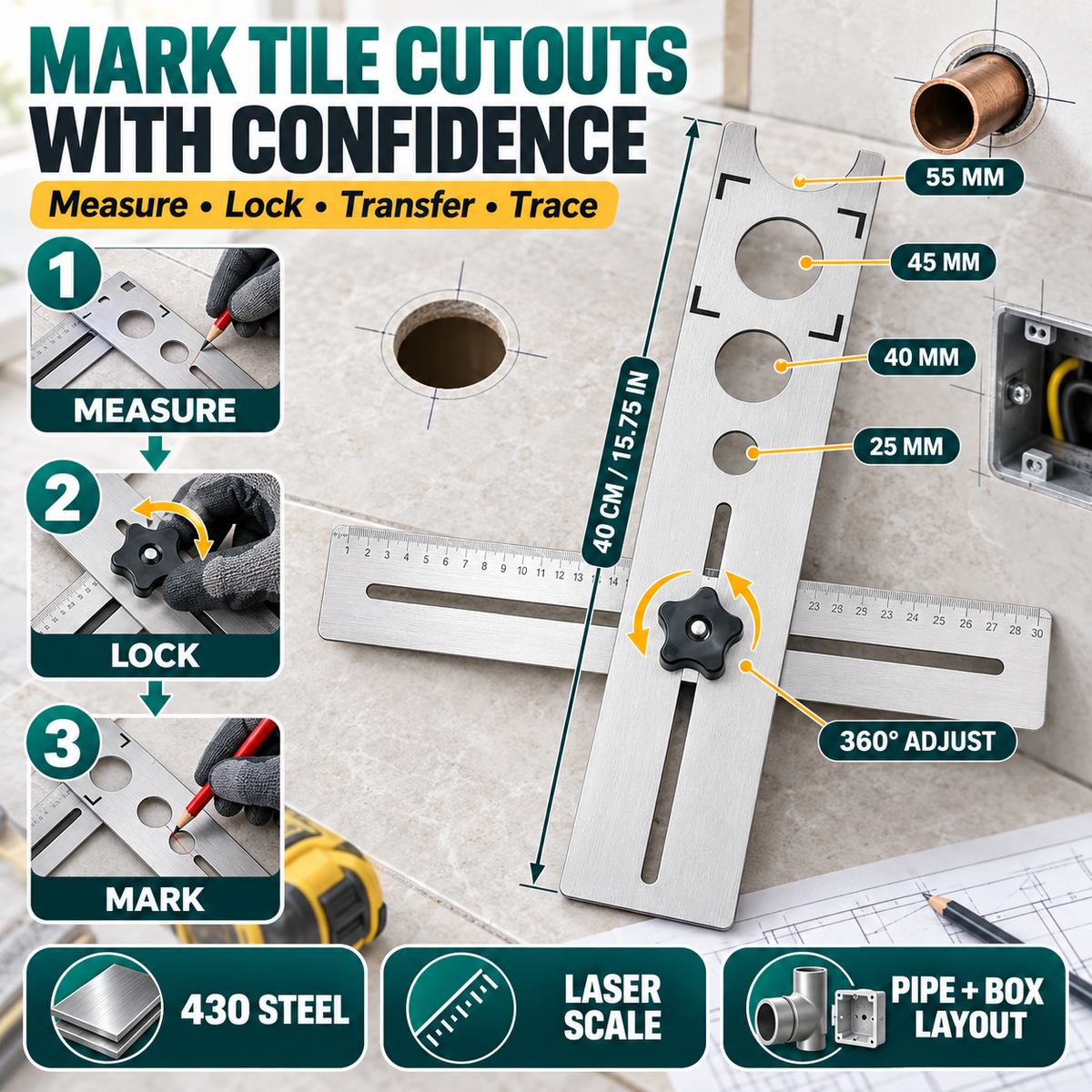

Trace Common Openings Without Hunting For Another Template.
Integrated circular guides give you convenient reference shapes for common hole-marking work. Select the guide that suits your layout, confirm the required finished opening, then trace your cutting line.
Important: The openings are marking guides. Always confirm the actual finished hole diameter, required clearance and tool cutting width before making the final cut.

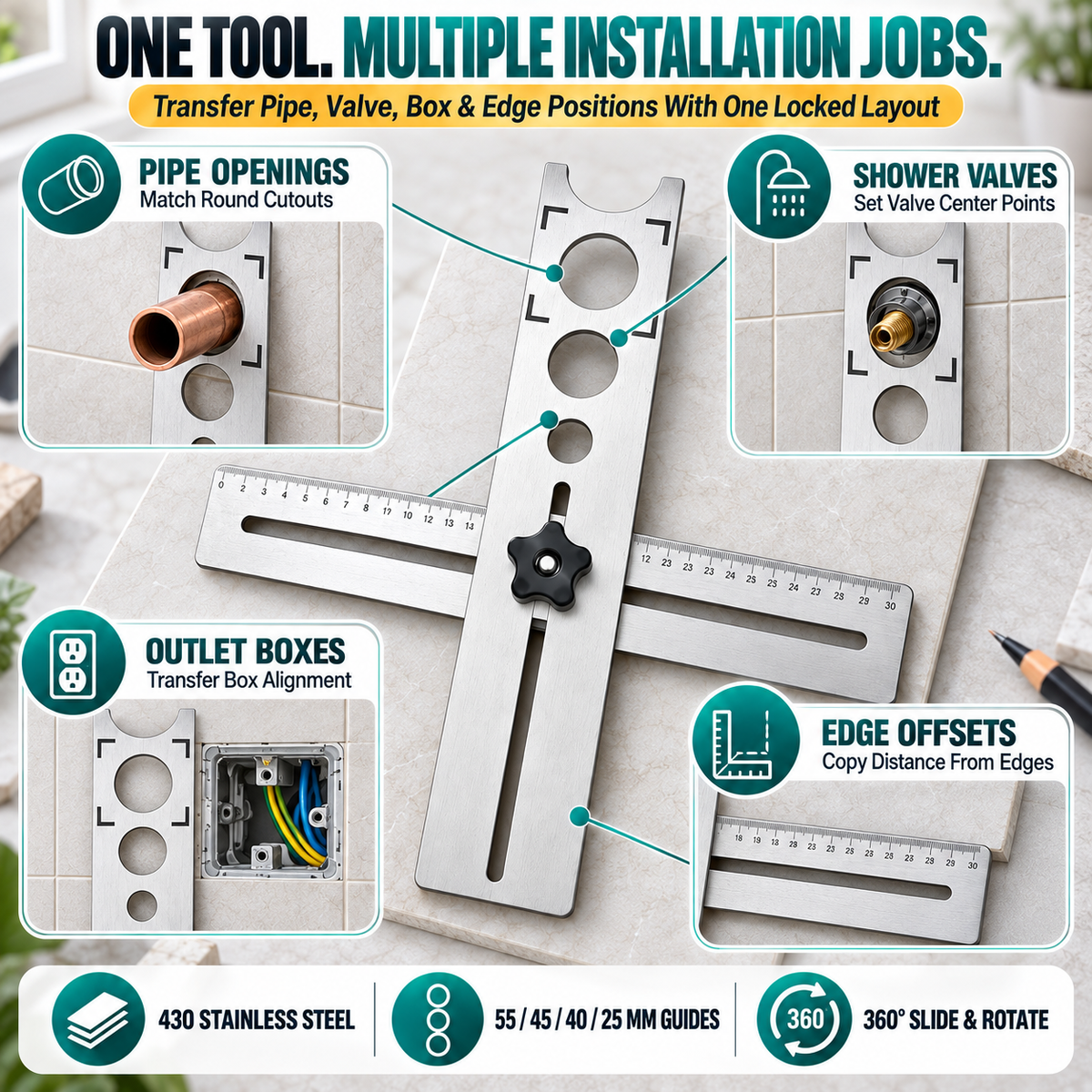

Built For The Layout Jobs That Slow You Down.
Use one adjustable reference tool for the positions that regularly appear during tile, plumbing, electrical and renovation layout work.
Copy the position of plumbing penetrations before marking the matching workpiece.
Use the ruler markings and body references to assist with electrical-box layout.
Transfer a measurement from walls, corners or existing surfaces without rebuilding it from scratch.
Establish the reference point for plumbing fixtures before marking the surface material.
Useful when several openings need to stay aligned relative to one another.
Copy an existing installation position onto replacement tile, panel or board.
A Rigid Metal Guide You Can Read At A Glance.
The ruler uses a 430 stainless-steel body with clearly marked measurement scales, long adjustment tracks and a large hand-tightened center knob.

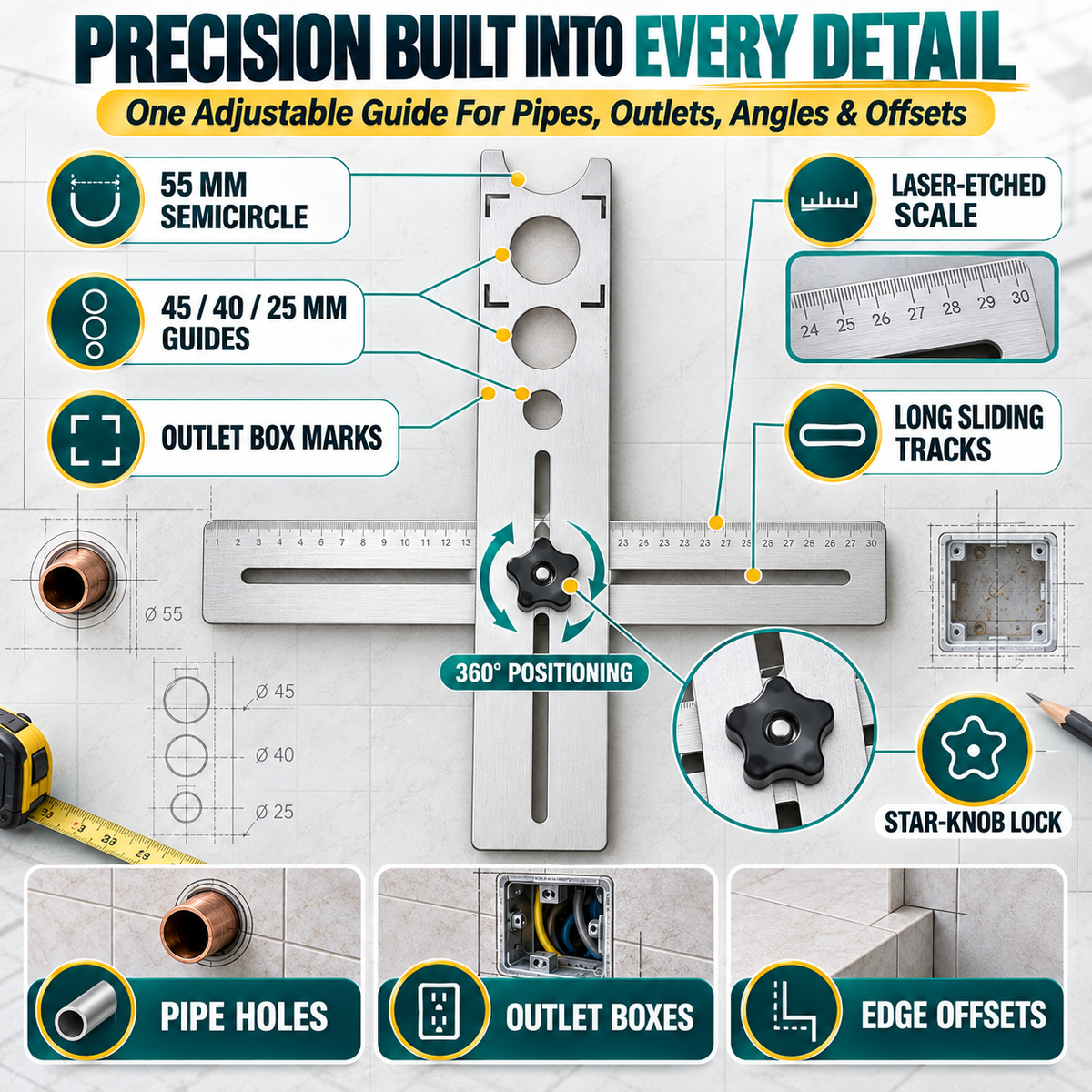

The Useful Details Are Built Into The Tool.
Set the spacing and angle, tighten the knob and carry the same reference to the workpiece.
Sliding and rotational adjustment helps with straight, offset and angled layout references.
Four built-in reference openings reduce the need to reach for a separate circular template.

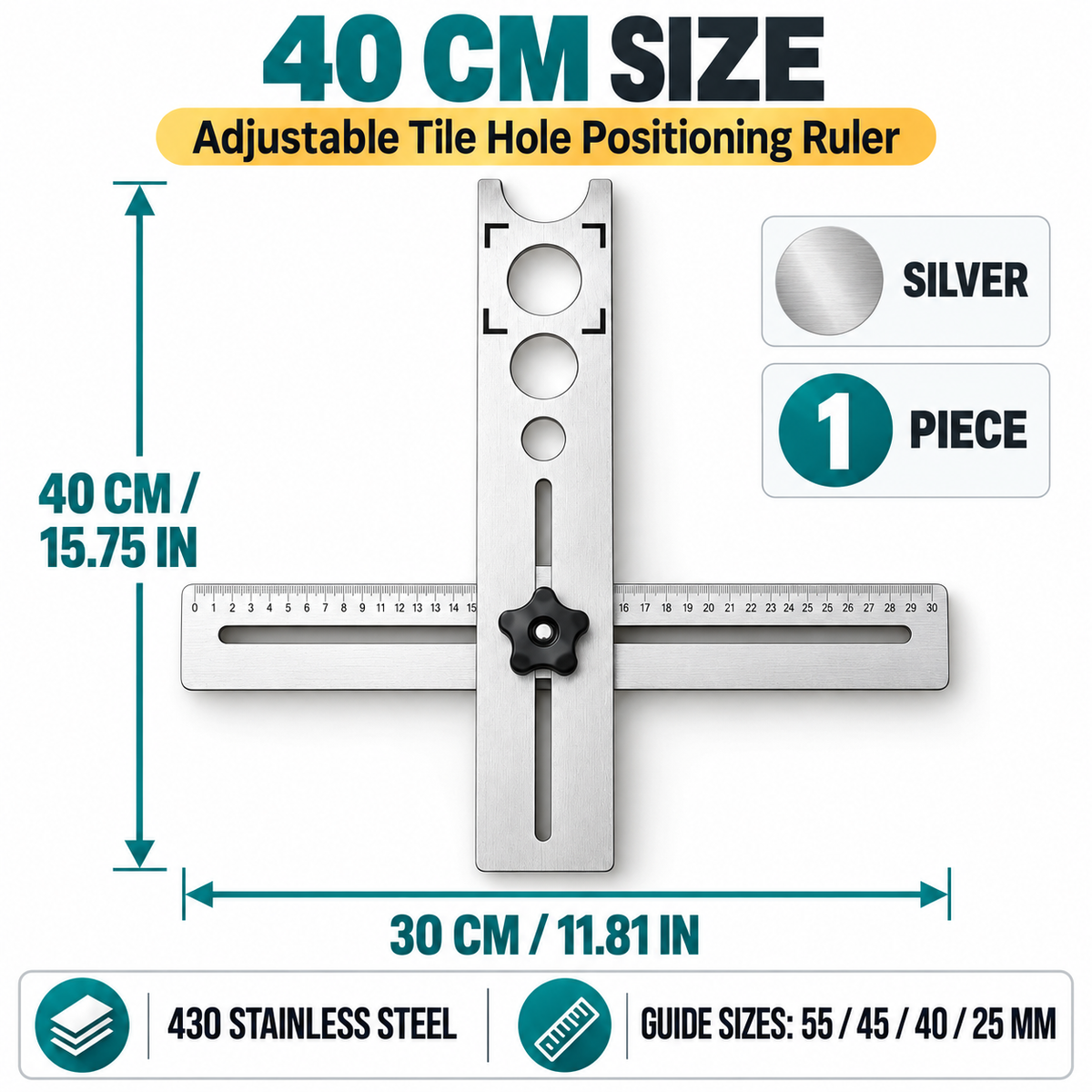

A 40cm main ruler gives you room to capture positions across common installation layouts.
The stainless-steel structure provides a rigid reference surface while positioning and tracing.
Suitable for pipe, fixture, outlet, edge and multi-point positioning work.

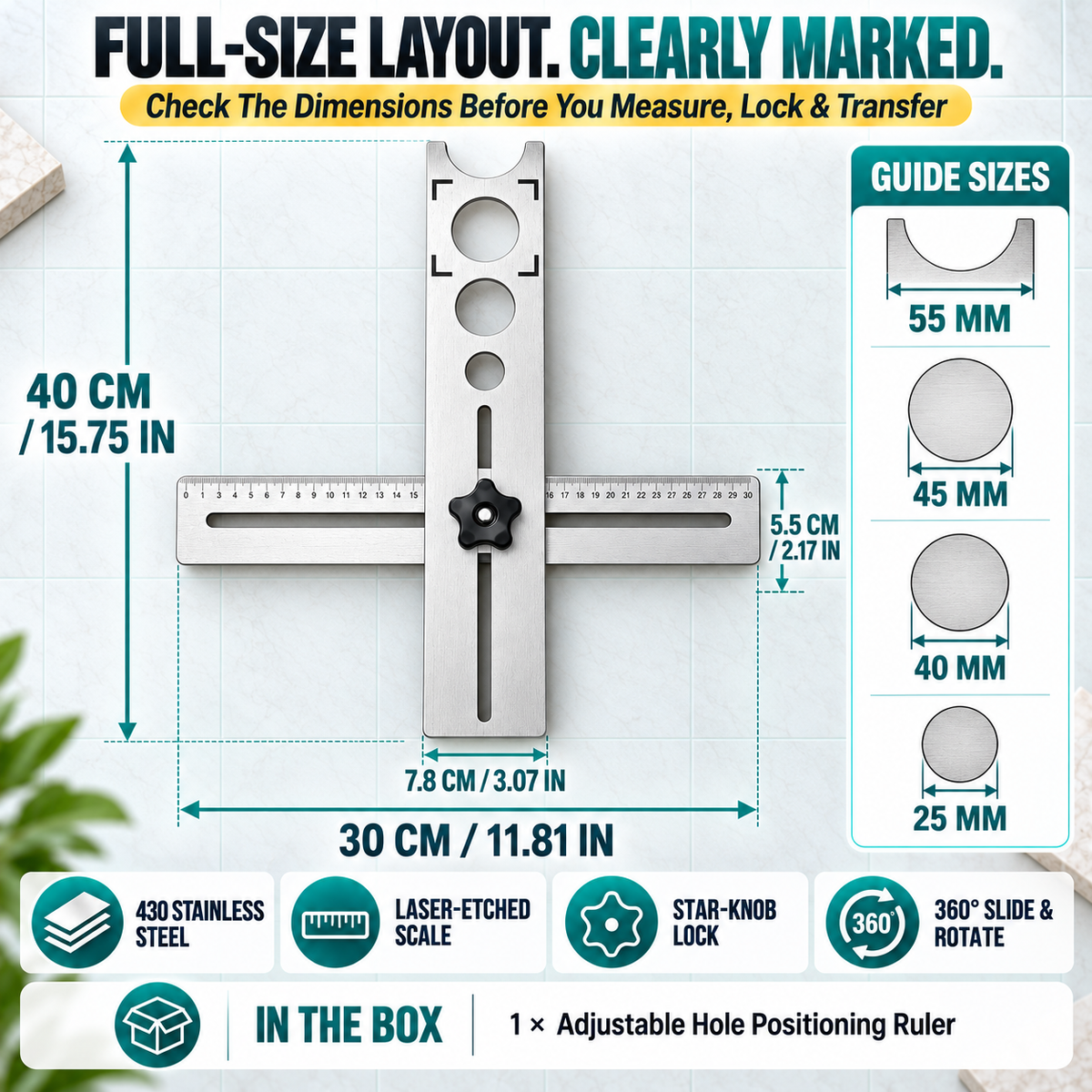

Product Specifications
Review the dimensions and built-in guide sizes to make sure they suit the layout work you plan to do.
Dimensions are approximate. Always verify the actual installation position, required hole clearance and material compatibility before drilling or cutting.
Frequently Asked Questions
What is this ruler mainly used for?
Does it cut or drill the hole?
Are the circular openings the exact final hole size?
Can I use it for angled positions?
What materials can I mark with it?
What should I check before making the final cut?
Capture The Position Once. Bring It To The Workpiece.
Keep pipe centers, box positions and offsets together in one adjustable setupβso your next marking job starts with a clearer reference.
